High-Density Mobile Shelving

Storing more in less space? It’s possible.

Have you outgrown your storage space? If you have, you’re not alone. Growing out of storage space is common among businesses—what’s even more common is that many think there are no other options besides moving to a new building or renovating an existing one. Those things cost money, time, and ultimately—productivity.

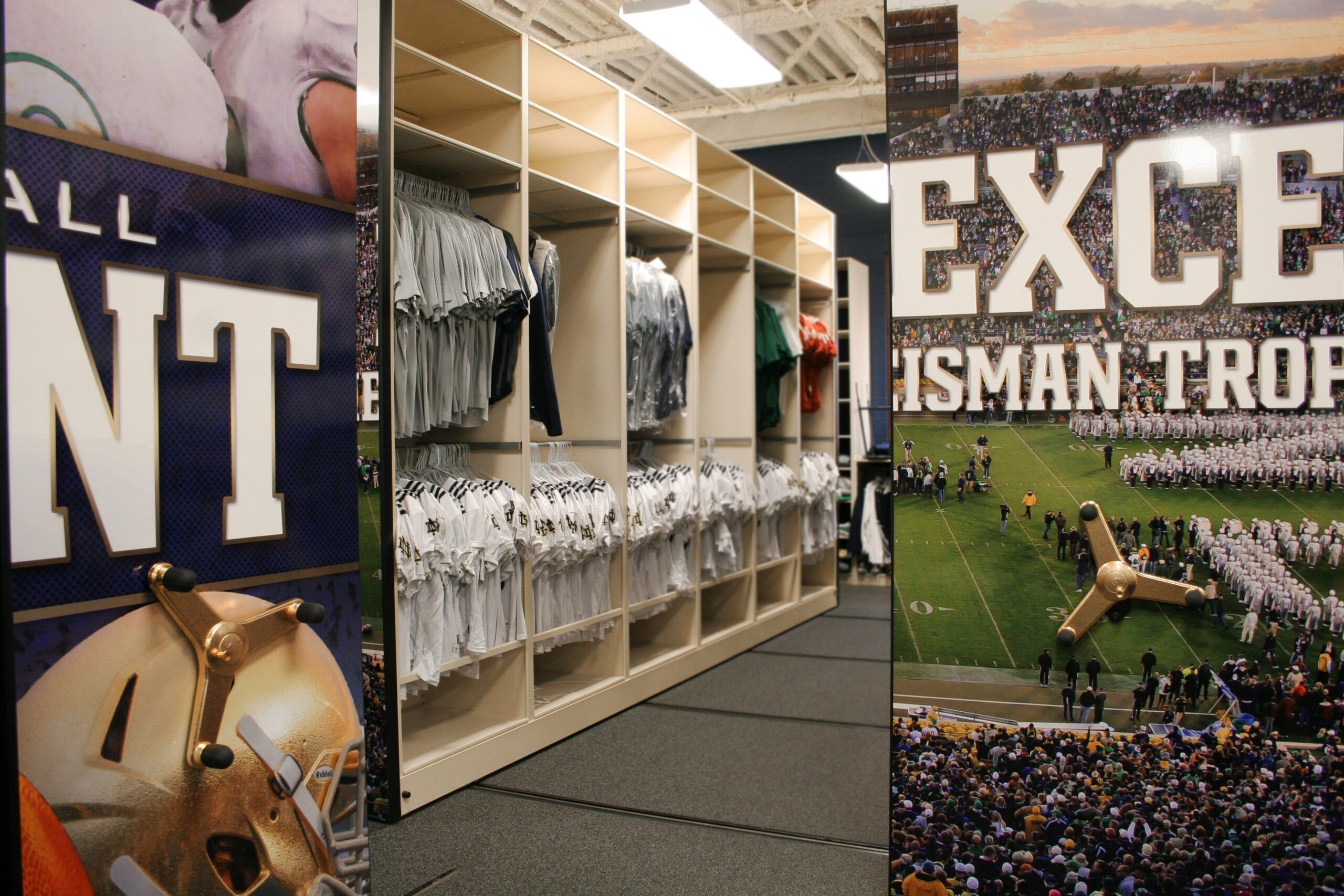

We have a solution—utilizing a high-density mobile storage system to store the items that are meaningful to your business, whether that’s library books, evidence inventory, parts and supplies, athletic gear, and more. Spacesaver’s compact mobile shelving solutions offer a way to store more in less space, or to double the amount of storage in the same footprint.

Not sure where to begin with high-density mobile storage? We’ll take you through it—get started below.

Learn more about our high-density mobile storage:

Learn more about Bradford Systems:



Mobile Storage: The Concept

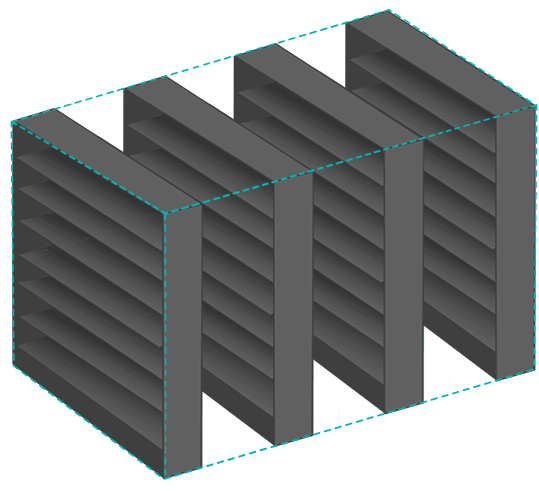

Think about a typical area of static shelving—a library, for example. In between library shelves, there are individual aisles for patrons to walk through and select books. These aisles, while necessary for library-goers, are actually wasted space that could store more books or be used in other ways.

Now, imagine that you’re able to put those static library shelves on moveable carriages that could compact together to create a dense space—but still be able to retrieve any book, any time. The space you save from compacting those aisles gives you extra space—additional study areas, a computer lab, a collaborative classroom, or a café—all of it possible without new construction or renovation.

Applications of High Density Mobile Storage

We offer all types of high-density mobile storage systems:

gallery_librarymobile_2

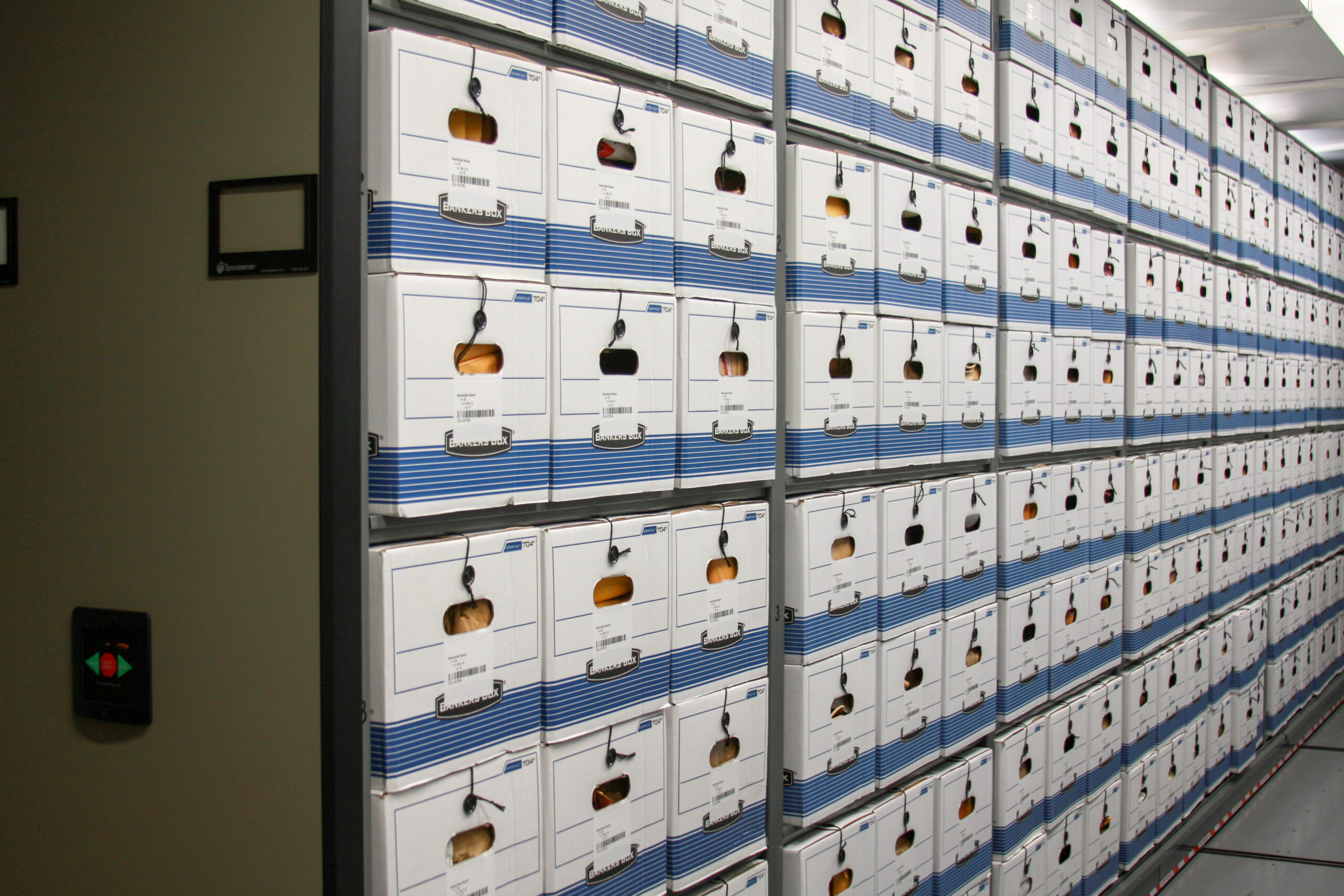

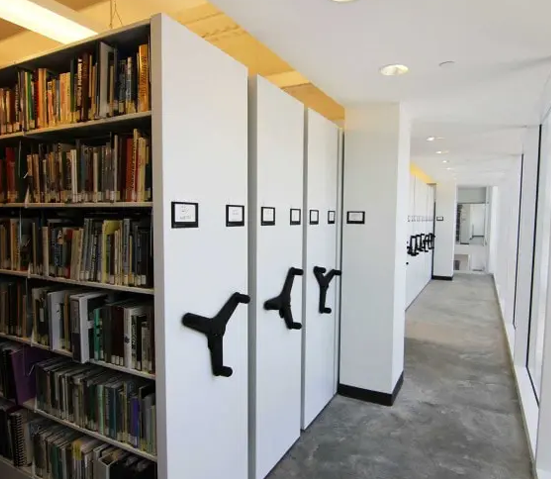

Standard

The most widely used high-density mobile system, available in all modes of operations and offers an array of safety options.

gallery_metalshelving_2

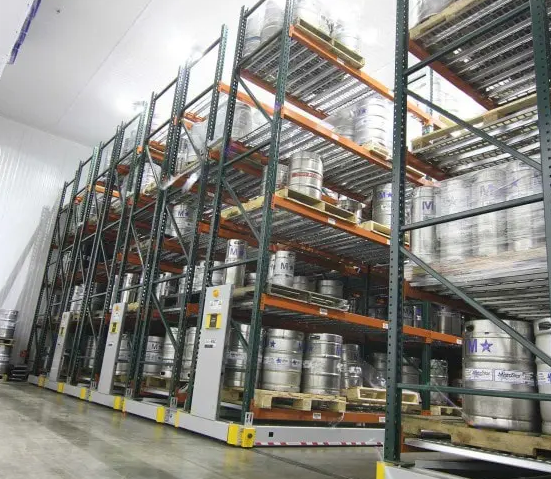

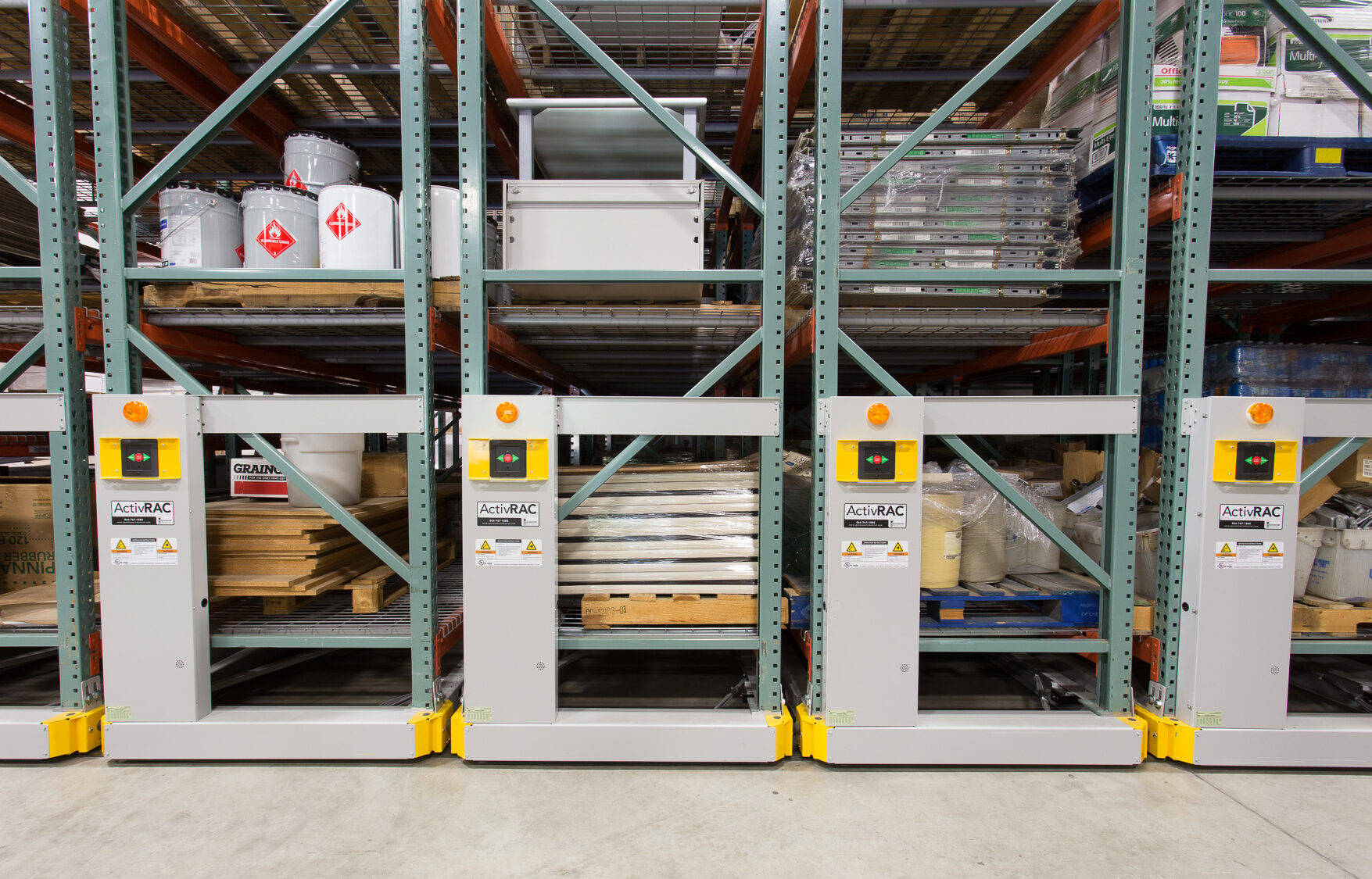

Heavy-Duty

A solution for storing large or heavy items without facility expansion or renovation, heavy-duty mobile storage systems can hold 7,000 to 30,000 pounds per carriage.

gallery_archivalstorage_1

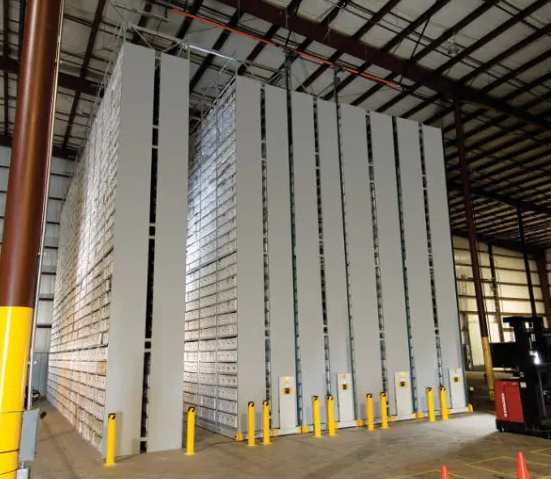

Archival

High-Bay Archival Storage Systems allow you to maximize the capacity of the room by storing archival boxes and records from floor to ceiling.

gallery_equipmentuniformstorage_2

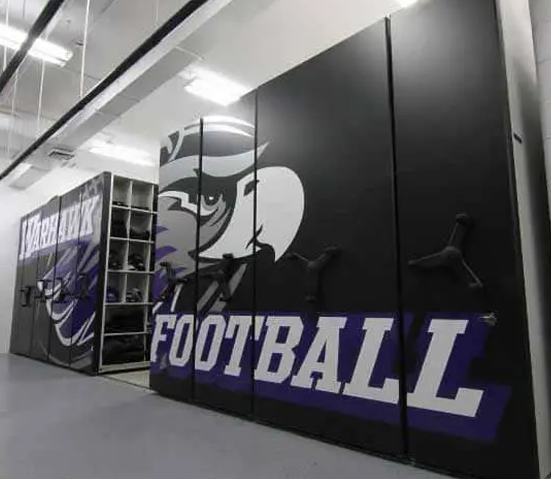

Low Profile

The mobile storage option for when relocating is in your future. Carriage aisles are accessed with the press of a button for optimum reliability and ease of use.

New Product – LevPro by Spacesaver

A Suspended, rail-less system for high density shelving.

Using suspended shelves allows for installation of high density shelving without constructing a railing system in your floor. Other benefits of the suspended system include:

  • Durable steel construction
  • Suspended design allows for an easier relocation at a later date
  • Easy to clean under and around because equipment doesn’t rest on the floor

High Density Mobile Shelving: Modes of Operation

Depending on your needs, we have three different ways to operate your mobile systems:

Mechanical Assist

Units are operated by simply turning an ergonomically designed three-spoke rotating handle. The handle allows users to move carriage weights of 4,000 to 10,000 lbs. with only one pound of effort.

Powered

Activate systems by pushing a button. You can enter the aisle as the carriage begins moving as requested. We also offer Touch Technology Control™, an LCD touchscreen that provides optimum ease of use and security.

Manual

For lighter loads and a more cost-effective alternative to mechanical assist and powered controls, carriages can be moved side-to-side by pulling a single handle.

Compact Mobile Storage: Safety Features

When it comes to a moveable shelving system, safety is our primary concern—after all, we want you to feel comfortable using the system. Based on your needs, we offer the ability to close and lock your system when not in use, and depending on the type, systems can be programmed for controlled access to specific aisles, etc. Here are a few more of our many safety features.

Safety Sweeps

Safety sweeps are included in every mobile system, and every aisle is required to have one floor sweep. We have two options available:

diagram_highdensitymobilestorage_3a

Photo Sweep

An infrared light beam, unaffected by sunlight or ambient light extremes, projected the length of the carriage at its base stops system movement when broken by a person’s foot or other object (for use with powered systems).

diagram_highdensitymobilestorage_3b

Safety Sweep

Provides full aisle protection for people and objects in the open aisles by automatically stopping carriage movement upon contact with a barrier (for use with mechanical assist systems).

diagram_highdensitymobilestorage_3c

Aisle-Entry Sensor

If a person enters a closing aisle, cross-aisle sensors mounted 20 inches up from the carriage base stop the system from moving (for powered systems only).

diagram_highdensitymobilestorage_3d

Zero Force Sensor

By projecting multiple infrared photoelectric beams across an open aisle the full length of the carriage, the Zero Force Sensor (ZFS) system detects a person’s entry into a moving aisle or presence in an open aisle and automatically locks down carriage movement (for powered systems only).
